图像采集卡

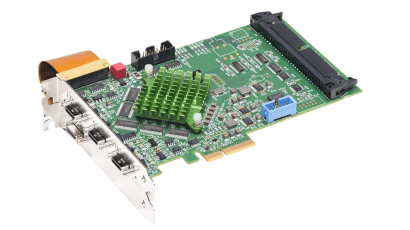

PCIE-1122-AE

Axion 2xE, 2-port PCI Express Camera Link Frame Grabber

  • Half-Size PCI Express Board Gen 2.0 x4
  • Camera Link clock up to 85 MHz
  • Camera Link Base/Medium/Full/80-Bit (10-tap)
  • Supports up to two CL cameras (any combination). A second Base Camera SDR connector requires an additional PCIe bracket position
  • Supports PoCL and non-PoCL cameras with SafePower
  • Image sizes up to 268,435,456 x 16,777,216
  • Independent I/O (trigger, encoder, strobe, etc) for each camera
  • Supports quadrature encoders
  • On board timing sequencers

技术资源链接：

产品型录 技术文件下载
  • Axion 2xE, 2-port PCI Express Camera Link Frame Grabber
